Renewable energy system
GRINOR provide many complete systems as
electric system, Individual electric system,
electric network and Energy gain increaser for all type of
Grid-Tie electric system
System components: Solar Panels-Wind Turbines and
Grid-Tie system can be directly connected
to the local electricity network. During the
working time the collected electricity can either
be used immediately (which is normal for systems installed on
offices and other commercial buildings), if the electricity
generated more than the consumer (at rest time or
holidays) the excess electricity will be flow back to
the grid (make your electric meter turn back). When the Grid-Tie system is unable to provide the
electricity required, power can be bought back from the network.
In effect, the grid is acting as a electricity energy
storage system, which means the Grid-Tie system does not need to
include battery storage.
Grid-Tie system are often
integrated into buildings. Special is the PV technology is
ideally suited to use on buildings, providing pollution and
noise-free solar power without using extra space.
• When consumer turn on, the collected power will be tie
into grid for support load electric. It will make slow down
the speed of your electric meter.
• When consumer turn off, the
collected power will be flow back into National Grid. It will
make your electric meter turn back.
Solar panels-Wind turbines, Charger, Battery, Inverter.
Individual system (Stand-alone photovoltaic
systems) have been used for many years in the world to
supply electricity to applications where grid power
supplies are unavailable or difficult to connect to.
Examples include monitoring stations, radio repeater
stations, telephone kiosks and street lighting. There is
also a substantial market for PV technology in the
leisure industry, with battery chargers for boats and
caravans, as well as for powering garden equipment such
as solar electricity fountains. These systems normally
use batteries to store the solar power, if larger
amounts are required they can be combined with another
source of power - a biomass generator, a wind turbine or
diesel generator to form a hybrid power supply system.
System components: Solar
panels-Wind turbines, Power house (Charger, Battery, Inverter),
Electric network (Post, Cable, House hold interface)

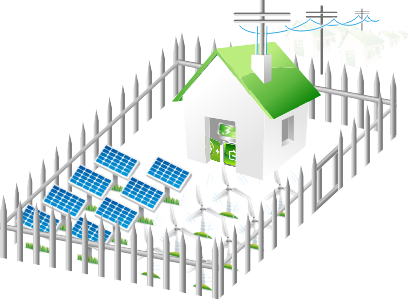

Independent network work same as large scale of
Individual system. It supply electricity to village or a number
of house hold where grid power supplies are unavailable or
difficult to connect to. Examples include remote village on countryside
or island. With the design as generator and backup large
energy, the system can be supply continuous in 3 day
without any power received.
Independent network should be a hybrid system of Solar
and Wind Power. These energy will be working supplement
together for getting power every time.
Your existing renewable
system special is Solar system will increase the energy
gain by using our Increaser system. There have 2
natural factor which is impact directly to the solar
energy gain are: Sun position and clouded.
solar panel only collect the maximum power when their
face is perpendicular with sun angle. Sun position will
be change base one each hour of day we call (hour
angle). Sun position change also the angle when the
earth' axis tilt at each day of year (day angle).
Tracking system will solve the sun position problem
- Even have good tracking system the solar panels will
not received maximum power thought day because of
clouded. Average in one day have 12 sun hour but in fact
the solar panel only receive around 4-5 hour of sun.
Even in some few continuous day the sun sight is
clouded. Magnify system will solve the clouded
- Detect and
automatic tilt the panel opposite real position of the
sun via smart microchip,
- Increase collect power energy up to 40 percent
compared to stationary panels.
- Always running well even in the cloud or bad weather
- Save energy with special construction for rotation
One axis Tracking system:
• Working status:
The day angle will be fix to the suitable angle. The
system will track the sun by times of day on one axis
is low, maintaining cost is low, return invest time is
simple, one system can be control a large number of
Easy to upgrade when
add more panel to the existing system.
Only track the
by hour angle, the result not so good compare with two
Two axis Tracking system:
• Working status:
With 2 axis, the system will easy track exactly the sun
position. One axis follow hour angle, another one is
follow day angle.
Perfect tracking result with 30-40% extra power get back
is complex, so cannot apply on large number of panels.
Can not upgrade, must to invest new tracking system when add
new solar panels.
Magnify sun power system
- Apply on the clouded time, the system will support
strong light for solar panel base on light amplification
by reflection. and make - Increase collect power
energy up to 60 percent compared to normal panels.
Automatic sun magnifier.
• Working status:
smart microchip will automatic adjust the light
amplification base on current climate.
With this kind of system you will never mine to the time
or the dense of clouds.
increaser system can apply on large number of panels and
very easy to upgrade.
increaser can collect power more than 60 percent .
of the the high increaser system is complex, cannot apply on large number of panels.
The high increaser system can not upgrade, must to invest new
system when add new solar panels.
Fix sun magnifier.
• Working status:
manually by user in case of the day have many clouded.
Cheap, easy way for improve the solar system on the
place have low isolation.
upgrade when add new solar panels.
If forgot put out
the increaser system when the sun shine strong again the
lifetime of solar panel will be decrease.
